Electronic Equipment Manufacturing Machines

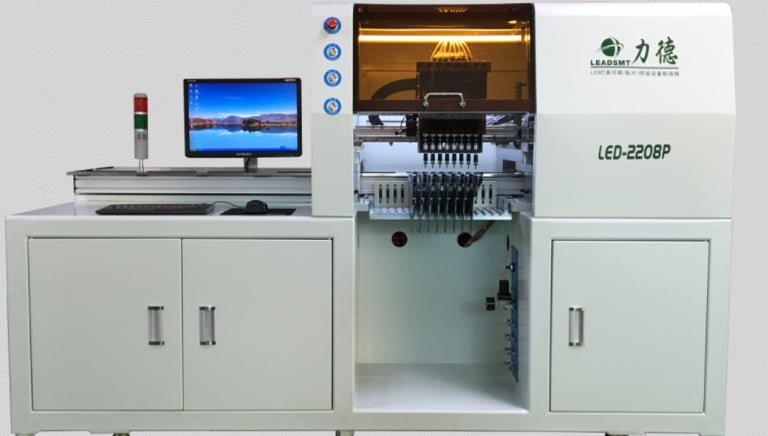

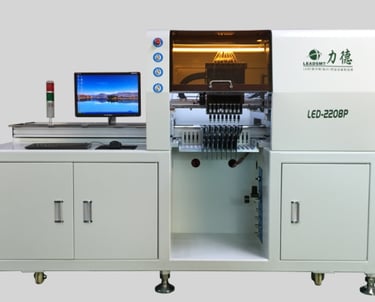

The carrying table of LED-2208P adopt Japanese Panasonic Servo motor and imported Rail which ensure its movements with excellent stability and high precision. X,Y Axis driven by Panasonic Servo Motors with combination with Linear rail from Taiwan ,make the placement components on board with strong abilities : Higher precision, Faster Speed, High-Class stability

12 8 Heads Automatic smt Pick and Place Machine

6 Heads Pick and Place Machine

Easy understand imaging type programming method on the machine make it much more convenient for operations with automatic position on the pad of the pcb. Multiple feeders can be optional for different types Leds and other smd components such as ic and resistors .DFI Industrial Computer system and self-design control software make the operational system on Industrial type stability and easy to learn .

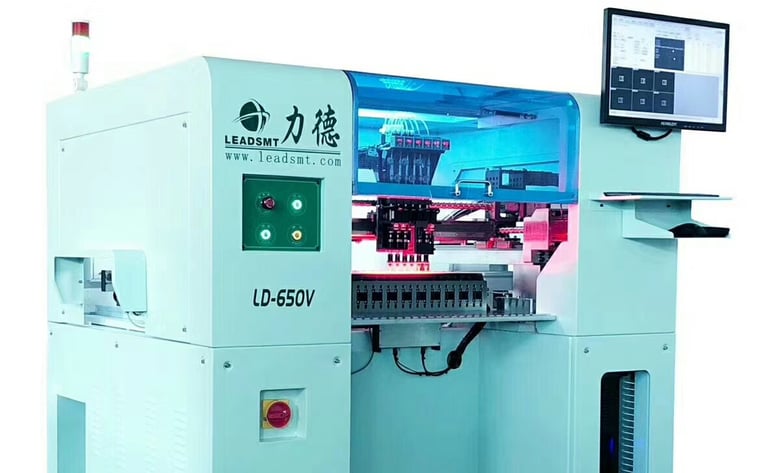

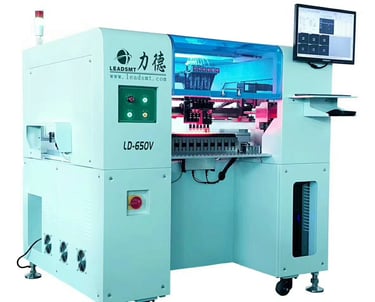

8 Heads pick and place machine(made in China) is the most reliable Led automatic pick and place machine manufactured by Shenzhen Leadsmt Technology Co.,Ltd ,which meets the strong production ability demand of domestic electronics factories ,SMT Workshops and Led smd workshop for Led lights including T5,T8 1.2m Led tube lights ,

8 Heads led pick and place machine

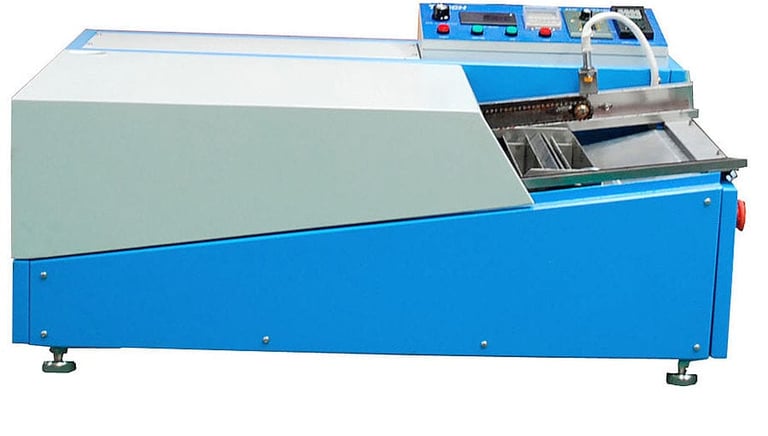

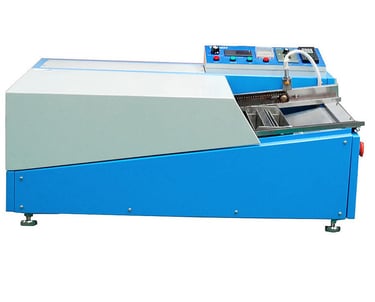

TB680 has been developed by Torch, aiming at the practical status of the current soldering technology inland. It occupies the vacancy of the small automatic wave soldering inland. It adapts to the research and production in research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. The whole machine is a desk-type.

Desk Mini-Type Wave Soldering Tb680

UV Laser Marking Machine

Get flawless results on certain plastics, glass, ceramic and a variety of other organic or heat-sensitive materials with the SMARTmark 3W UV Laser marking Machine. "Cold marking" technology minimizes the heat stress that leads to costly product damage thanks to a 355nm UV laser wavelength.​A wide range of industries benefit from versatile UV laser technology.

It delivers smooth, hygenic marks required of medical device manufacturers. In industries like electronics and automotive, UV laser allow companies to mark small, delicate components, including circuit boards and silicon wafers, with less waste.

Miracle

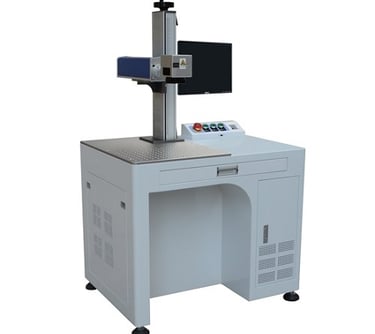

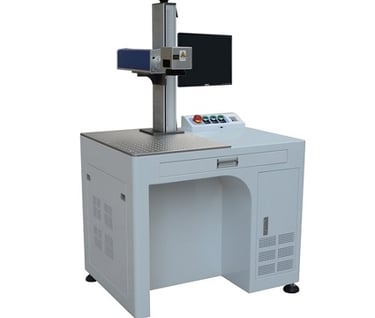

Laser Marking Machine

Modulation

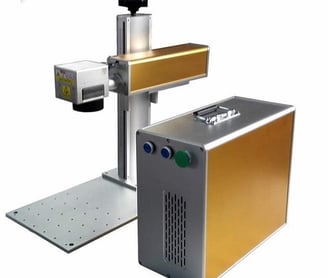

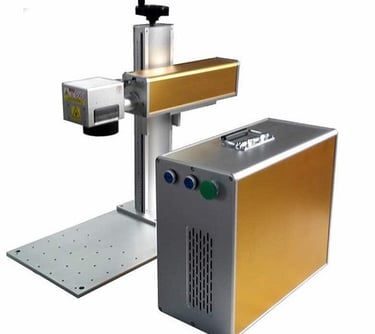

Jewellery Marking Machine

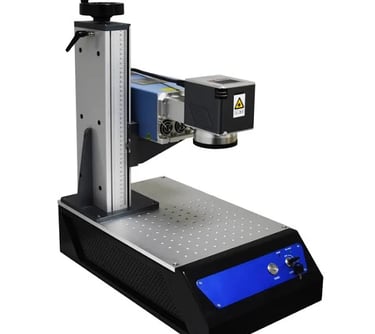

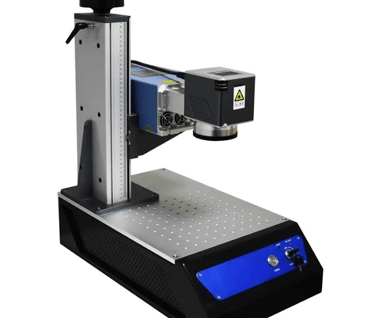

VOIERN

Laser Marking Machine

GOBO

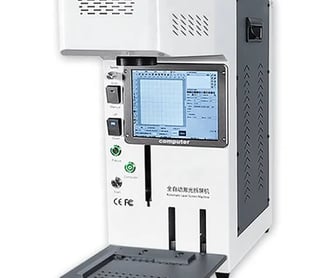

Laser Cutting

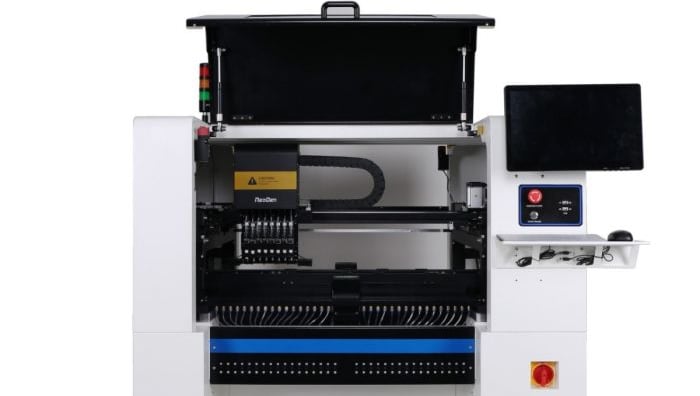

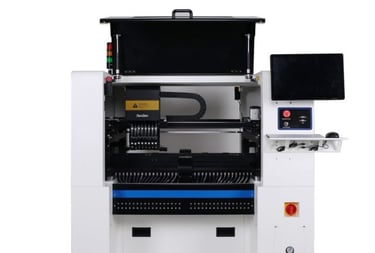

Neoden 10 - Pick & Place Machine

The Neoden 10 has been refined from the Neoden 8 design from lessons learned and customer feedback. Moving to a ball-screw mounting system has improved accuracy, increased speed, improved wear, durability and reduced noise.

Boasting a placement speed of up to 18000 components per hour (CPH), made achievable using an eight-nozzle gantry head.

The 1.2m semi-automatic solder paste printing machine is a high-precision solder paste printing machine specially designed by our company for domestic and foreign LED lighting companies. The equipment solves the problem of solder paste printing on a 1.2-meter long PCB board, the solder paste is printed evenly, and the thickness of the solder paste is easy to control.

1.2m semi-automatic solder paste printing machine

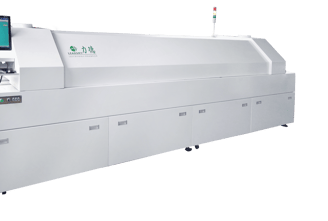

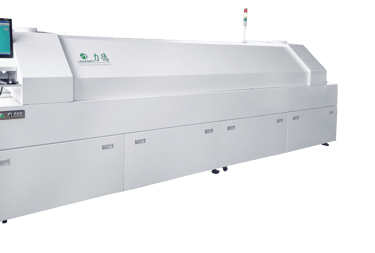

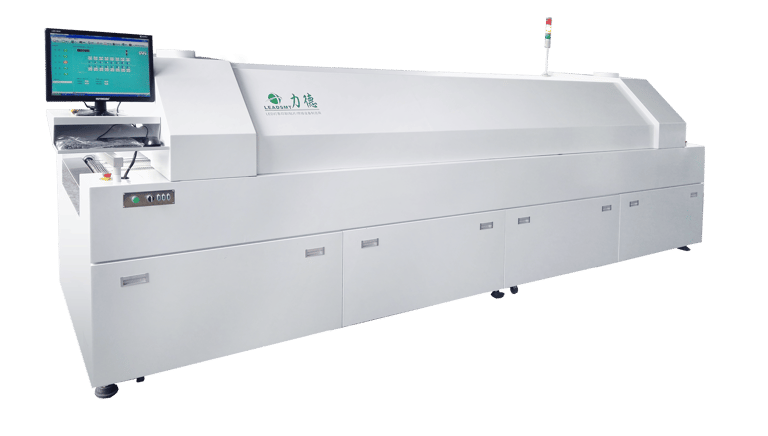

The precision eight-temperature zone lead-free computer reflow soldering equipment is a high-performance reflow soldering equipment created by our company for customers with high-end soldering requirements. This equipment adopts Siemens plus computer control, and the temperature control is very accurate.

Precision computer lead-free hot air reflow soldering machine

The economical lead-free reflow soldering machine equipment is a high-performance reflow soldering equipment created by our company for customers who have LED product soldering requirements. System, energy saving and environmental protection, suitable for the production and welding of various control circuits and LED lamp beads.

Economical eight temperature zone lead-free reflow soldering machine

The imported negative pressure detection system is used to accurately detect the suction material, and effectively prevent the leakage and throwing of the material. Six groups of cameras are synchronized with the visual correction system to ensure the accuracy of machine placement.
The automatic placement machine adopts built-in negative pressure pump vacuum system

Fully automatic multi-function placement machine DOB

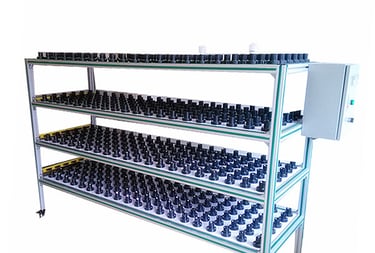

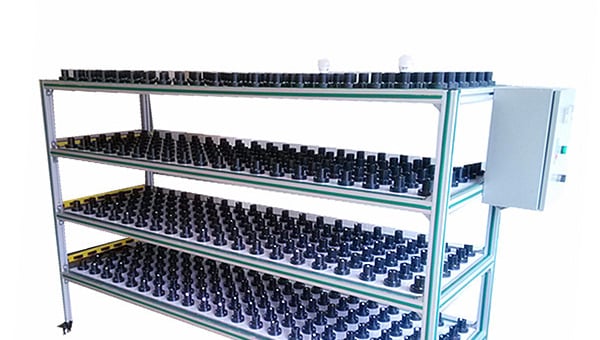

2080L×680W×1400H(mm) This equipment dedicated to aging test bulbs, observation whether energy saving lamps for short circuit, blasting capacitance, black, etc. Simple operation, simple and convenientThe frame adopts 40 * 40 aluminum profiles produced, is divided into 4 layers, each layer height is about 280mm. Using 15mm compression plate cushion, the surface with white fire board, and installation E27 aginglampholders , each layer can be also placed 120 LED bulb lamp.

AGAING LINE

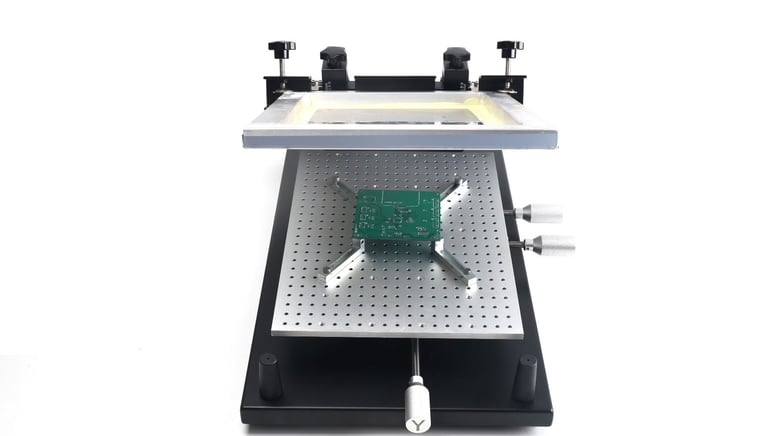

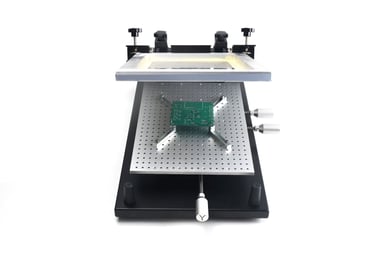

The operation of the printer is simple. First, clamp a framed stencil (available at very low cost from most PCB manufacturing houses) into the printer. Then, place the PCB on the included locator fixtures. Using the Vernier controls, move the PCB fixture until the solder pads perfectly align with the holes. Finally, move the solder over the stencil with the squeegee blade (included).

Manual Solder Printer - FP2636

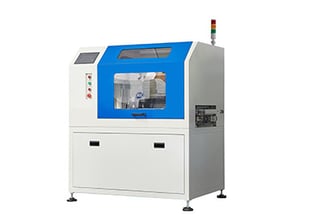

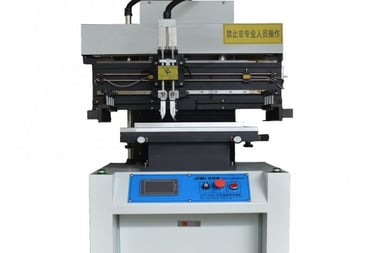

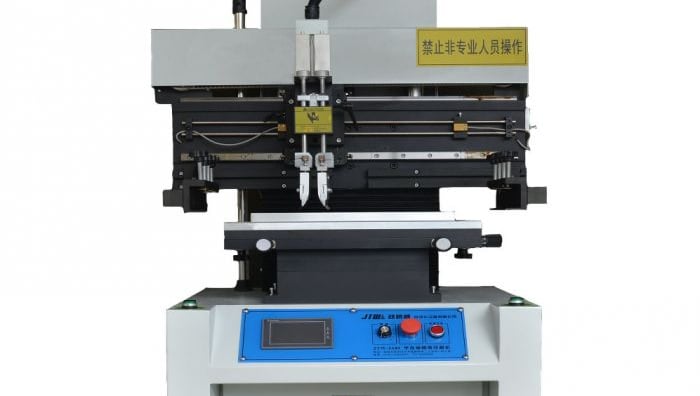

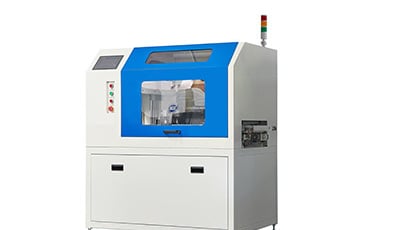

The stencil printer is semi-automatic, which means you can adjust it easily and fix the PCB. Users can also customize the stencil position and solder paste.

The machine's printing process is much quicker than traditional human-performed transfers. It works for PCB sizes of up to 600mm x 240mm (the total printing area is 700mm x 320mm), and it works with PCB thickness levels between 0.2mm and 2mm.

YS600 Semi-Automatic Stencil Printer

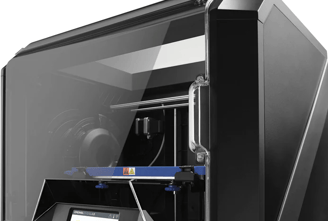

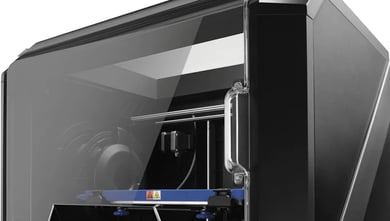

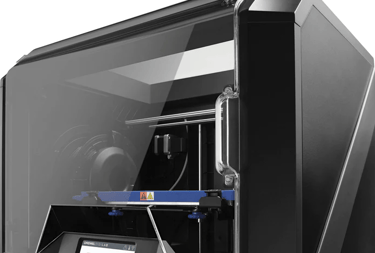

Start printing right out of the box with the Dremel Digilab 3D45 3D Printer . With a single extruder and a built-in self-leveling print bed, you'll be able to print your first 3D model via Ethernet, Wi-Fi, or USB.

The enclosed print area supports a build volume of 10 x 6 x 6.7". With a 50-300-micron layer resolution, the 3D45 can print

Dremel 3D Digilab 3D45 Printer

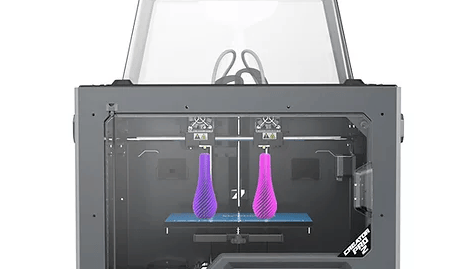

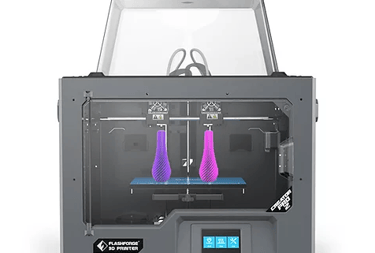

Print Volume : 200 x 148 x 150 mm
mirror mode : 80*148*150mm
Extruder Number : 2
Extruder Diameter0.4 mm
Maximum Set Temp. of Extruder : 240 ℃
Maximum Set Temp. of Platform : 120 ℃

Flash Forge Creator Pro 2

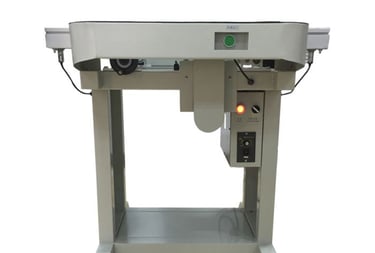

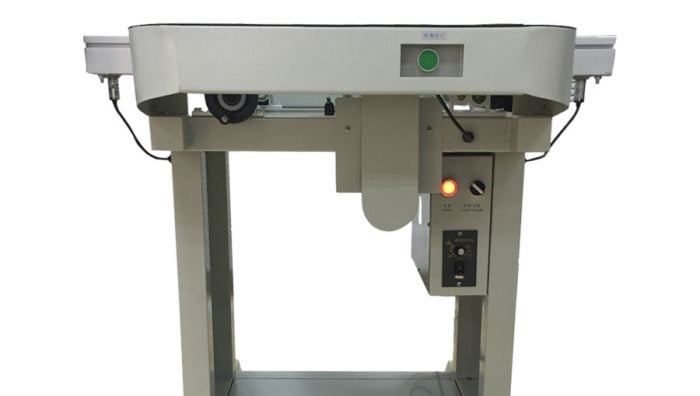

The NeoDen Conveyor J08 is a compact conveyor system that is suitable for PCB assembly, PCB buffering functions, electronic product quality analysis, and linking PCB equipment together.The product offers a range of speeds and measurement customizations for SMT production lines.

Conveyor

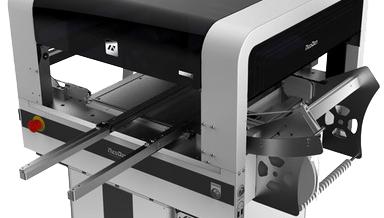

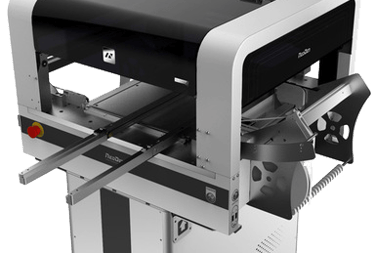

Two-camera vision system precisely locates coordinates and corrects misalignment
Optically-calibrated drive Automated rail system speeds production and enhances consistency Microprocessor controlled feeders 4 nozzle head - supports different nozzles for different sized components increases speed

NEODEN 4 - THE GAME CHANGER

THD METER(TOTAL HARMONIC DISTROTION)

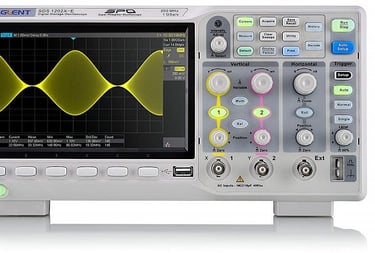

100 MHz Bench, Digital Oscilloscopes Ethernet, RS232, USB Interface LCD - Color Display 2 Channel CAT I 400V Record, Save.The 2190E combines performance and value all in one portable solution. With 100 MHz bandwidth and 1 GSa/s sample rate, these oscilloscopes offer advanced triggering capabilities, long waveform memory up to 40,000 points, and extensive features such as pass/fail limit testing, digital filtering, waveform recorder, and 32 automatic measurements.

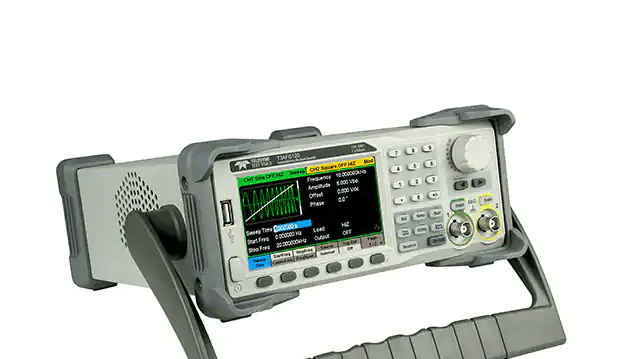

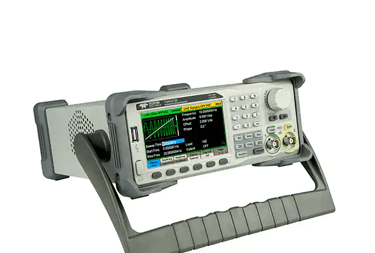

Enriched by our vast industrial experience in this business, we are involved in offering an enormous quality range of Digital Waveform Generator. Features: Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost

DIGITAL WAVE GENERATOR

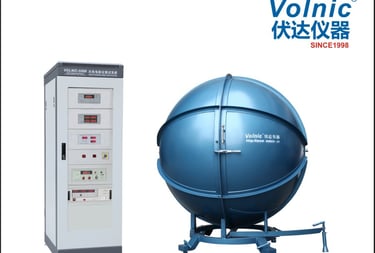

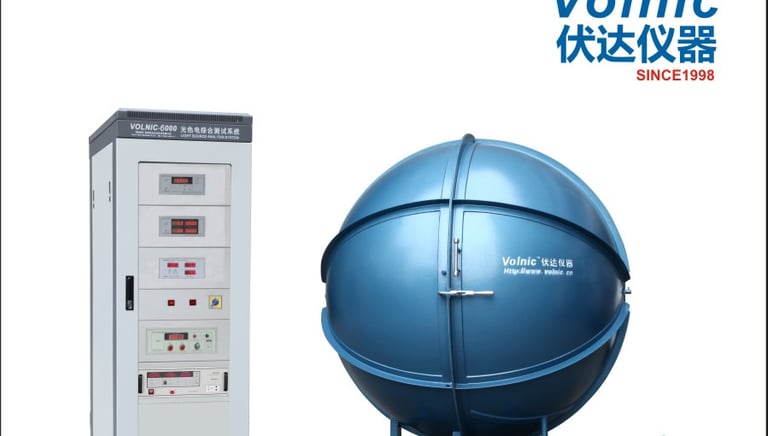

This system is designed for analyzing the photometry, colorimetry and electricity of LED, LED lamp, and LED phosphor, completely meets the test requirements of CIE for photometry and colorimetry. All the testing is intellectually controlled bysoftware, easy to operate. Self-correction and calibration function makes thesystem working at the best status.

TEST SYSTEM FOR LAMP PHOTOMETRY COLORIMETRY AND ELECTRICITY

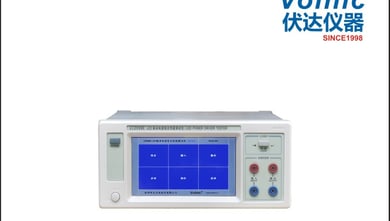

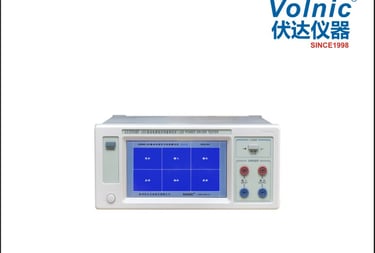

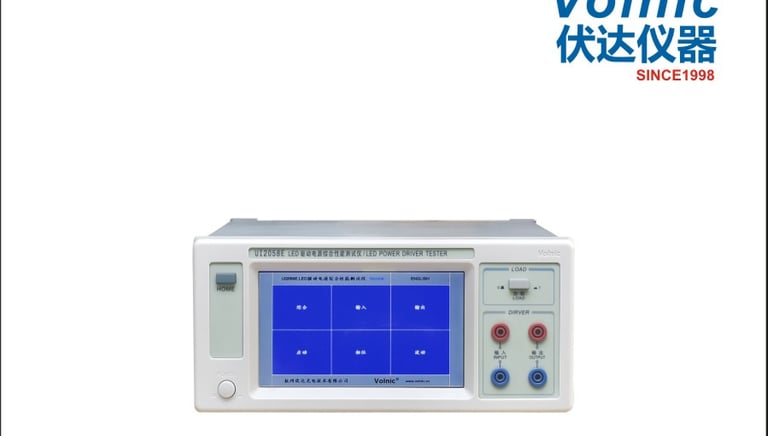

AC-DC converter testing instrument with harmonics. It is made to increase the quality of LED drivers/SMPS/AC-DC Converters at production. It contains a big Blue moon display to show AC parameters (left) and DC parameters (right) on the main page. The USB port and Pen-drive port are also optically isolated with an internal circuit for the safety of the user/operator.

LED DRIVER ON-LINE TESTER

Color LCD monitor display of input characteristic, output characteristic parameters,visual to read, easy for analysis and comparison. It's suitable not only for technology development, but also for test in production field Test frequency response of input, output current is 1MHz, it can accurately measure the various types of LED driving power

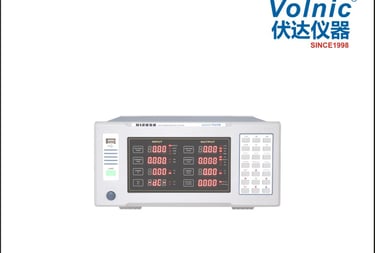

LED DRIVER TESTER

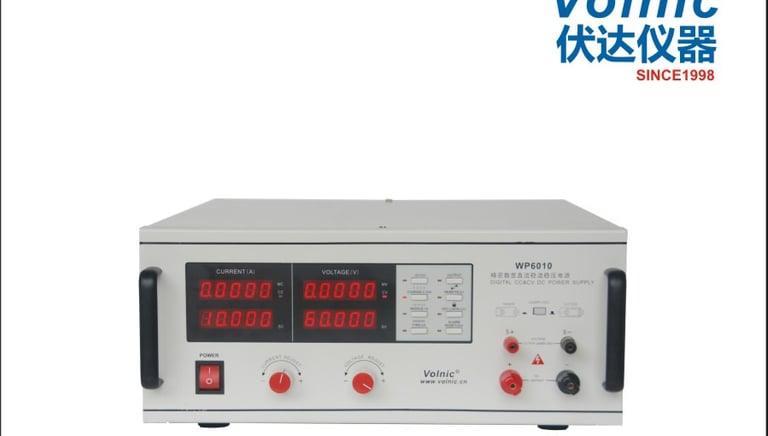

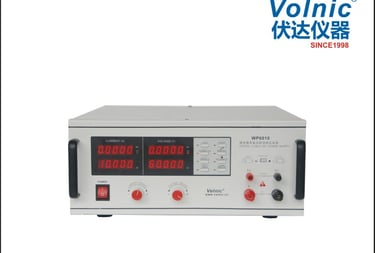

Can be used as both constant current source and constant voltage source As constant current source, max voltage can be limited to protect load As constant voltage source, max current can be limited to protect load With RS-232, instruments can control output voltage and current Voltage and current with high accuracy and stability With overheat, open-circuit, and short circuit protect, have good reliability while long-time work

WP CC&CV POWER SUPPLY

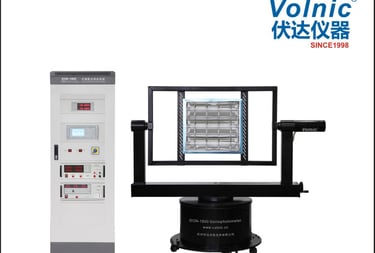

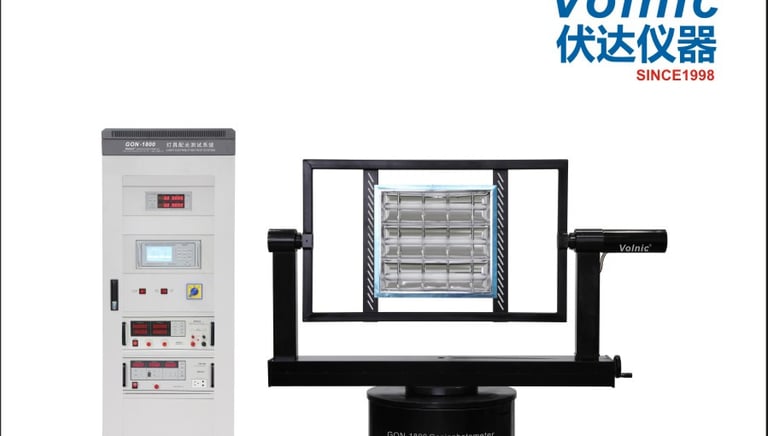

By rotating luminaries to fulfill different measurement method such as B-β,C-γWorld-famous motors and reductors are used, which make the testers transmission precisely and running smoothly with professional test jigs for grille light, spot light and street light(Optional) Innovation design for laser aiming calibration equipment with accurate, constant temperature and high sensitivity photometer detector, standard fine V(λ)correction with RS-232 standard interface and English/Chinese windows operation system With handhold remote control, easy to control the rotation of 2 shafts

GONIOPHOTOMETER

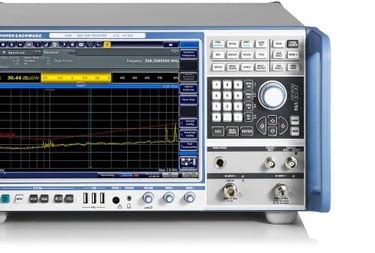

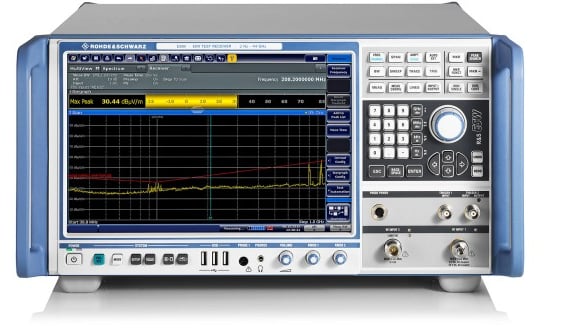

Rangeof sweeping frequency 9kHz~1000MHz,Resolution:1Hz Frequencystability: superior to 1x10-7 Inputimpedance:50ΩInputattenuation:0/10/20/30dB VoltageStanding Wave Ratio：≤2RF (ATT=0dB), ≤1.2RF （ATT=10dB) Detectionmode: range of peak value, quasi-value and average value Terminalvoltage measurement range: 0dBμV-120dBμV TerminalVoltage measurement accuracy: ±2dB Sweepingmode: sweeping range, step, level threshold and test time can be set Operationmode: manual and auto TestMode: constant and scan Displaymode: PC or LCD Newstandard can be added freely and easily.

EMI TEST SYSTEM

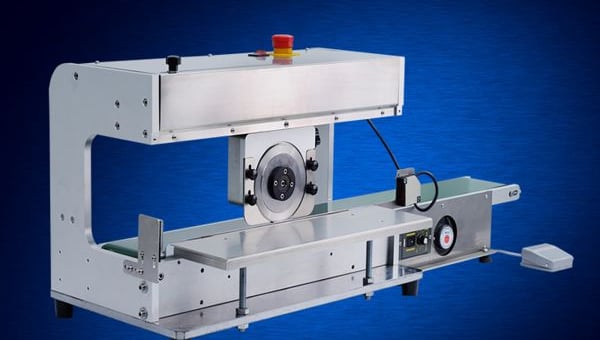

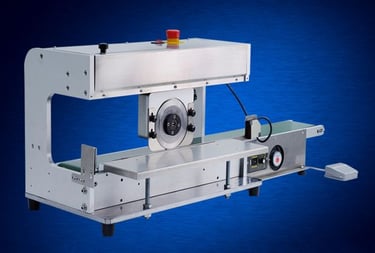

sliding speed of blade is adjustable manually Accurate adjustment on Distance between circular blade and straght blade, due to different depth of V-slot
compatible to situation that component accross the V-slot minimize internal pressure to avoid solder crack.Professionally Designed Hand Push Manual PCB Cutter PCB V-cut Machine for FR4 Board

PCB SEPARATOR

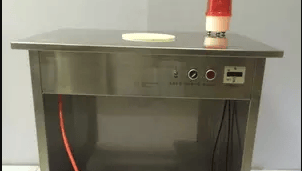

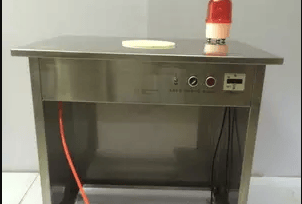

This machine with automatic testing function ,while punching the lamp cap ,the lamp will flash light if the bulb is workable ,can check the effect of punching and whether the lamp is workable or not . Use high quality cylinders, one cylinder control one needle, the depth of punching needle can be adjustable. Adopt High quality, high speed, harden needles, hardness>=60%.With function of Automatic counting the number of punching lamps ,can calculate how many pieces of lamps you have punching and display automatically .

BULB CAP PUNCHING MACHINE

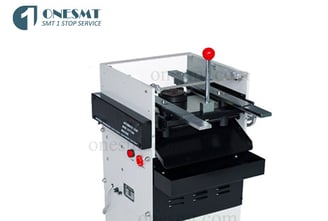

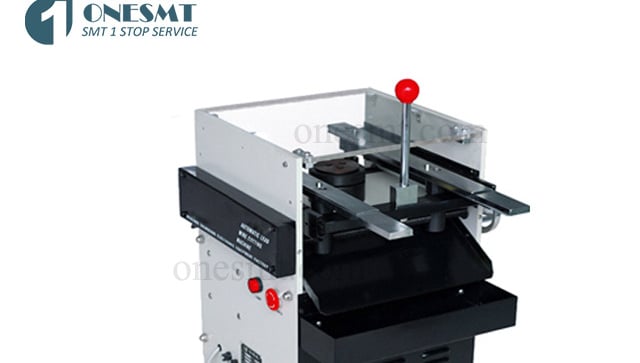

RS-911A is an automatic type PCB lead cutting machine. It can automatically feed pcbs and trim extra pcb leads to required length, and it can cut length shortest to 1.5mm. And wrap prevention device in the equipment ensures no damage on the board

PTH COMPONANCE LEAD CUTTER

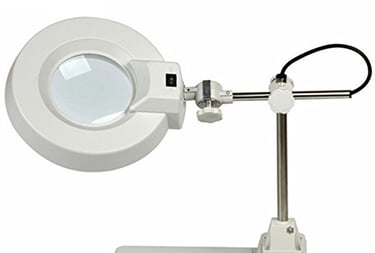

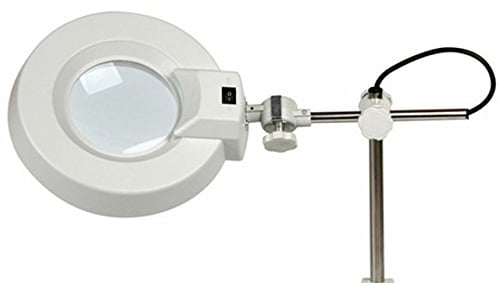

Magnascopes are specially designed for assembly & inspection in industrial purpose The magnifier is fitted with a 150 mm opitcal glass lens of 3.5x, effective aperture of opitcal glass is 135mm and 65mm Dia It has maximum possible power for a lens of its size consistent with virtually no distortion or chromatic aberration It gives fatigue-free stereo view equipped with round fluorescence tube which has a shadowless illumination, works on 220V mains Magnascope Illuminated Magnifier Table Model on Stand

Illuminated Magnifier Table Model designed for assembly & inspection

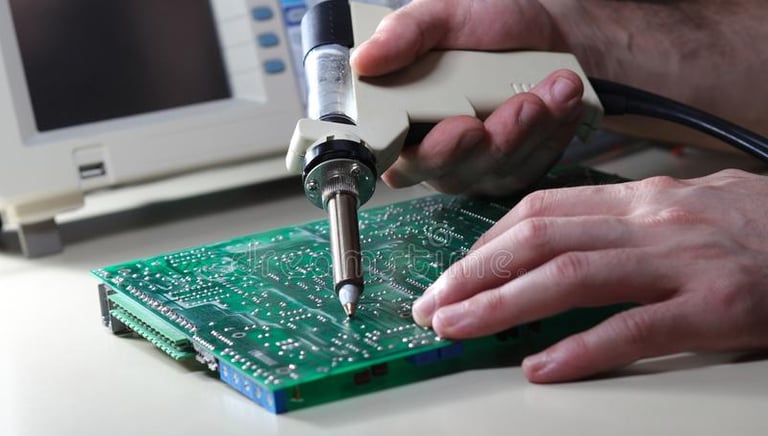

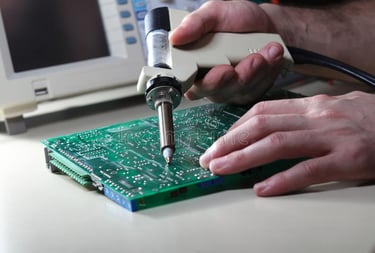

220V 90W S-993A Electric Vacuum Desoldering Pump Solder Sucker Gun Electric Soldering Irons hot air gun

DE-SOLDERING PUMP

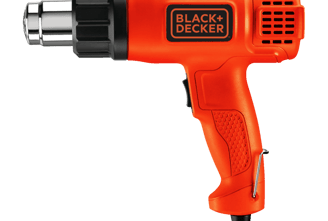

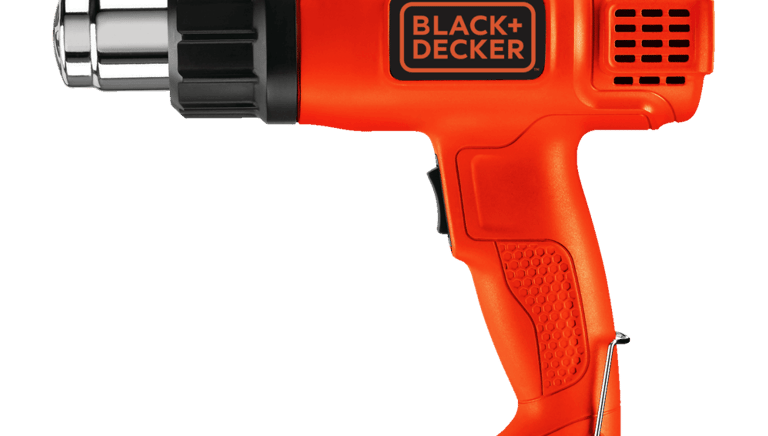

ual Temperature High Speed Heat Gun For Removing & Drying Paint Coats, Remelting Adhesives & Shrink Wrapping, 1800 Watts,This powerful speed heat gun is ideal for household and industrial applications. The gun can be operated for long durations with absolute efficiency. This is a well-designed and finished product which is extremely handy.

HOT AIR GUN

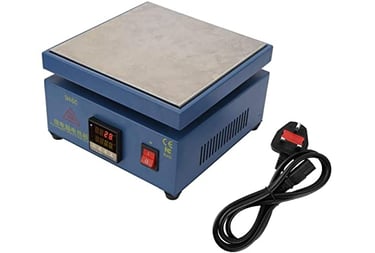

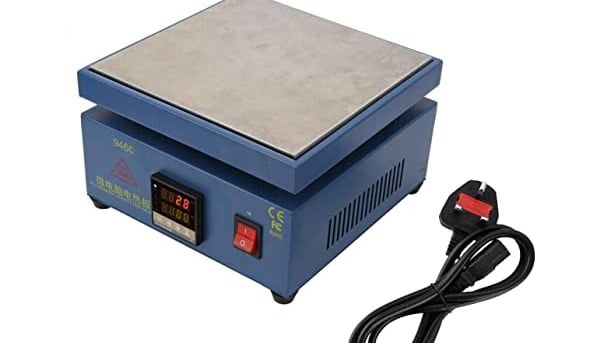

200*200mm 946C preheating station LCD Digital electronic hot plate for TV LED Back Light Lamp Preheat Removal Desoldering solder

SMD REWORK HOT PLATE

Designed for soldering or de-soldering SOIC, CHIP, QFP, PLCC, BGA, and other temperature sensitive components, an essential tool for cell phone repair, laptop repair, or circuit boards soldering. It can also
be used for heat shrinking. Truly a must-have
for DIY lovers and weekend professionals. Precise Temperature Control ----- The temperature is adjustable from 150°C all the way up to 450°C

SMD REWORKING STATION

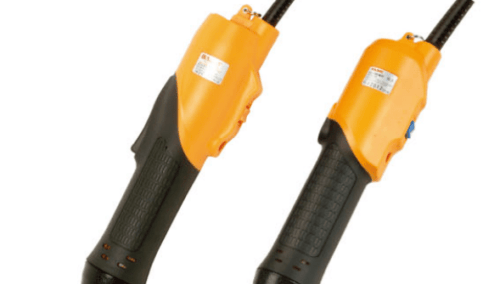

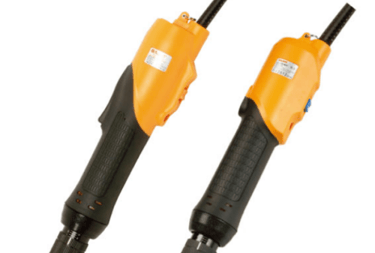

The screwdriver has an AC brush type motor. It is light weight, ergonomically designed, handy and easy to use. It can be used continuously for long durations and it boosts productivity. Power ON/OFF with an automatic trigger or push switch.

AUTO TORQUE CONTROLLED ELECTRIC SCREW DRIVER

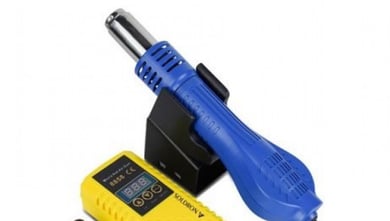

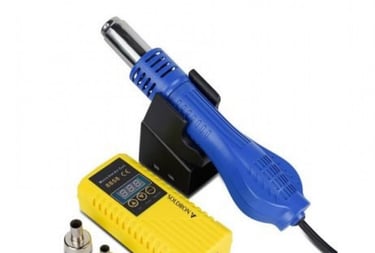

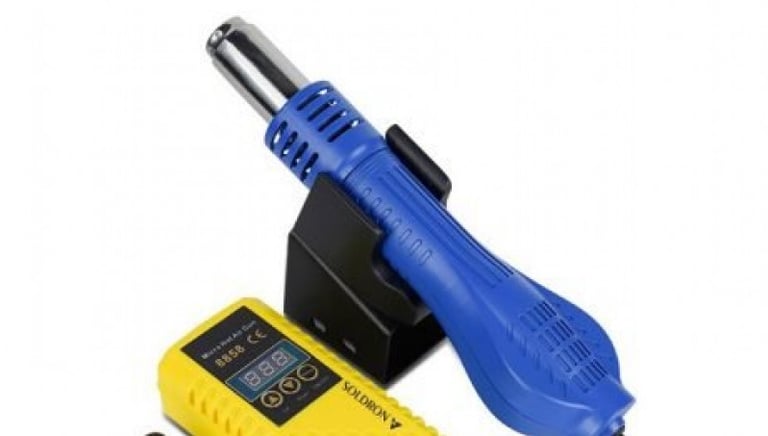

Soldron 8858 Portable Hot Air Blower is the newest, most efficient portable solution for Hot-Air Soldering and Rework Applications. The best and most affordable gear for Mobile Repairers and PCB to work on the go. Small enough to fit into even the tightest of workspaces, with digitally set-able temperature and fan speed and also the latest technology of sleep mode activation when placed in the cradle.

HOT AIR BLOWER

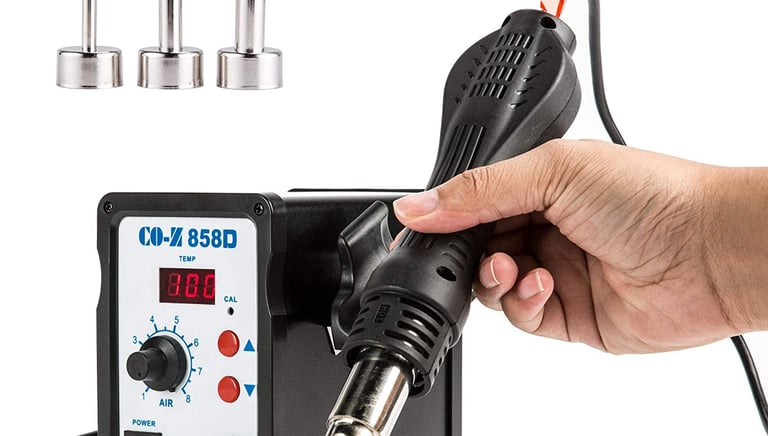

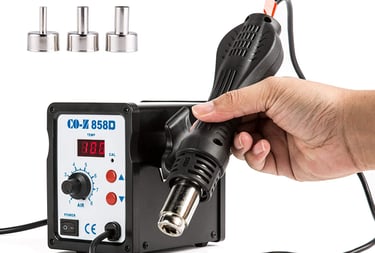

Hot Air Soldering Station is a compact, high-performance hot-air hand tool suitable for professional applications like Mobile Repairers and PCB work. A standalone hot air blower that can be used for the reflow and desoldering of the smallest SMD components,the best blower in the industry. Soldron has a full metalized powdered coated body and also has a microcontroller-based 7 segment display with SET and READ mode

SOLDRING STATIONS

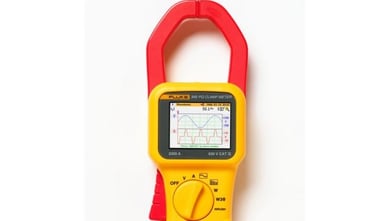

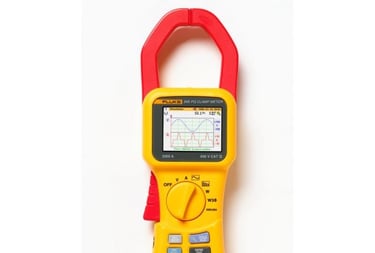

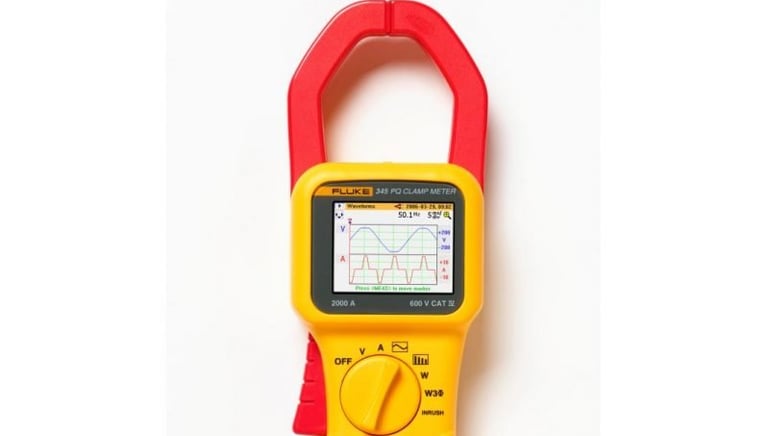

One of the leading wattage meters of the world, the multi-faceted Fluke 345 is packed with features such as a bright, color display to analyze the harmonic spectrum, a low-pass filter to remove high frequency noise and a high EMC immunity design, making the Fluke 345 power analyzer ideal for troubleshooting power quality on switching loads. The internal memory of this electric power meter enables long-term power quality logging for analysis of trends or intermittent problems.

POWER QUALITY CLAMP METER

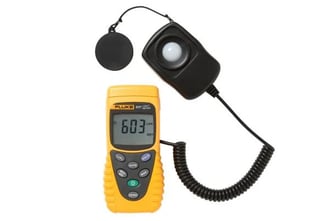

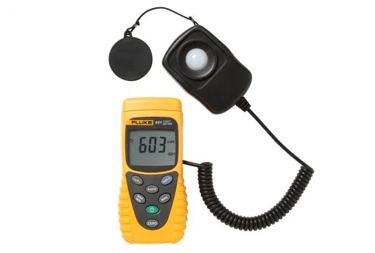

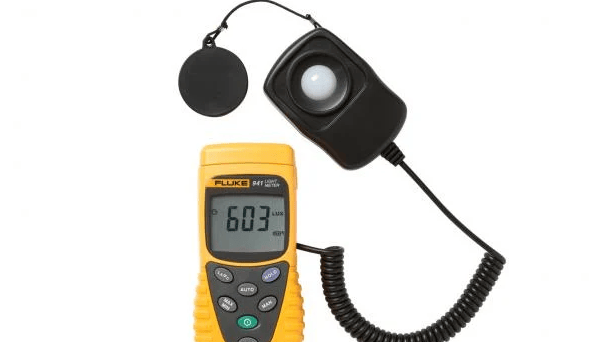

The Fluke 941 is a handheld luminometer than can measure visible light sent from a variety of light sources, to include fluorescent, metal halide, high pressure sodium, or incandescent lamps. With an extension cord to the light meter and separate display the Fluke 941 provides a handheld tool to accurately measure light in multiple environments. The Fluke 941 is a portable tool that measures light up to 20,000 fc of lux with an accuracy of .01 fc/lux.

LUX METER

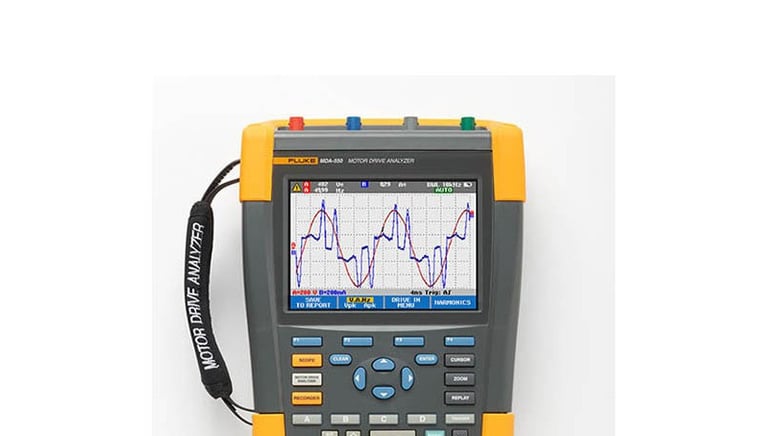

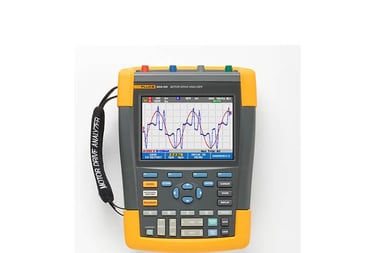

The Fluke MDA550 Motor Drive Analyzer, 4 Channel, 500 MHz with Motor Shaft and Harmonics simplifies complex motor-drive troubleshooting with guided test setups and automated drive measurements that provide reliable, repeatable test results on three-phase and single-phase inverter type motor-drive systems.

THREE-PHASE POWER QUALITY, ENERGY AND MOTOR ANALYSER

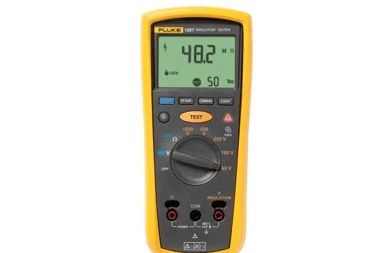

handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.

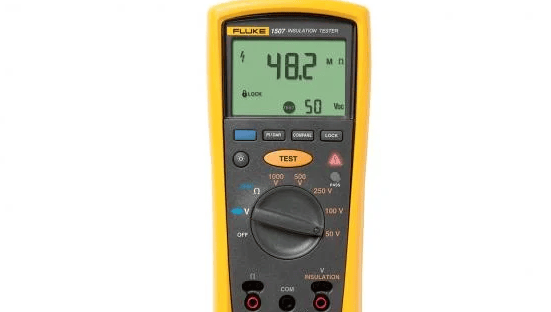

Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.

DIGITAL INSULATION TESTER

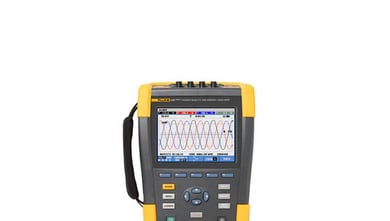

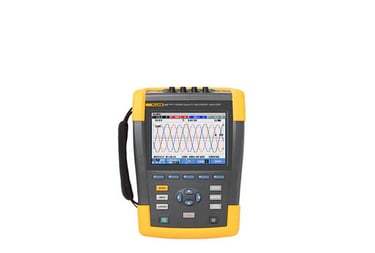

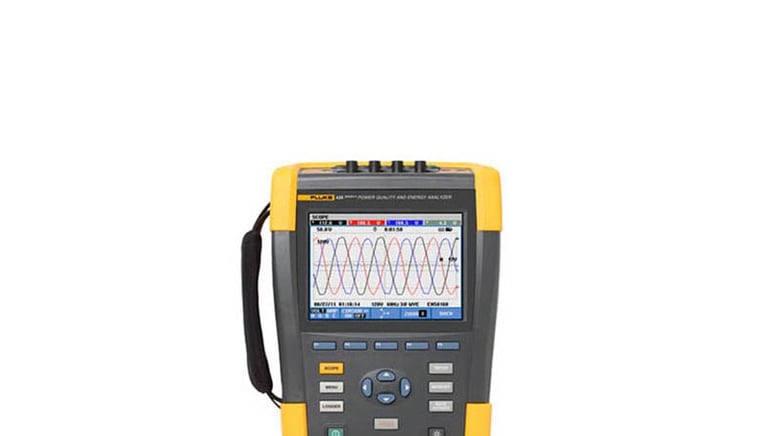

he Fluke 435II Three-Phase Power Quality and Energy Analyzer with Fluke Connect Compatibility and iFlex Probes as is like a power quality insurance policy. No matter what goes wrong in your facility, you will always be prepared with the 435-II. Equipped with advanced power quality functions and energy monetization capabilities, there is no electrical issue that this model cannot handle. Its PowerWave function captures fast RMS values and allows you to see every waveform to determine how the voltage, current and frequency values are interacting.

POWER QUALITY ANALYSERS

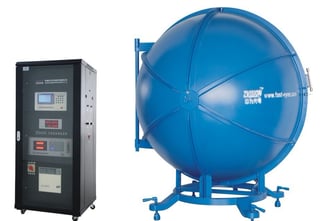

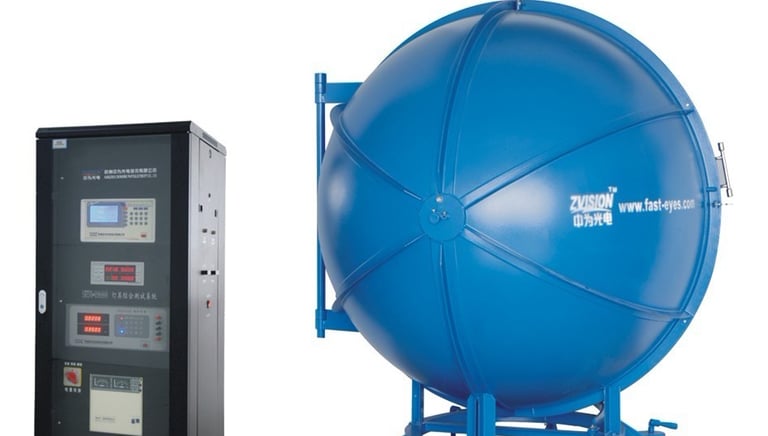

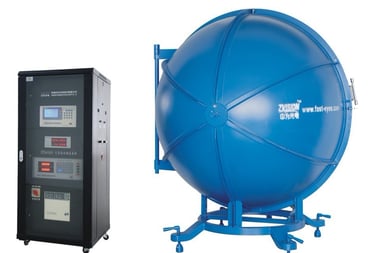

Applicable object: Tubes, bulbs, spotlight, project lamp, streetlight, tunnel lamp, etc.
Test parameters: Voltage, current, power, power factor, wavelength, luminous flux, light efficiency, chromaticity coordinates, color temperature, and CRI, etc;

SPECTROMETER

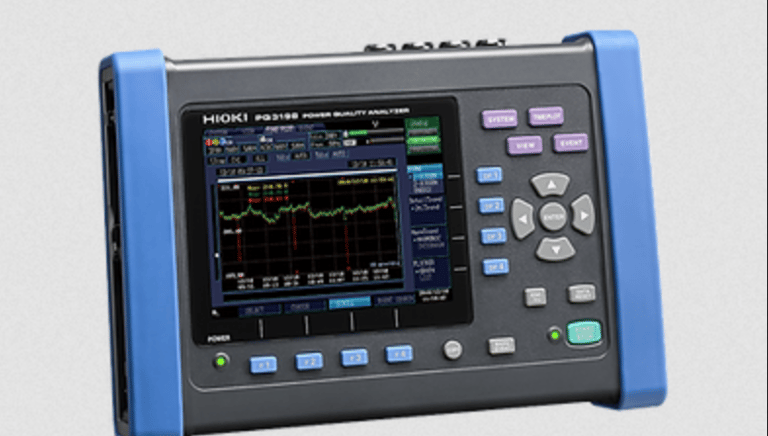

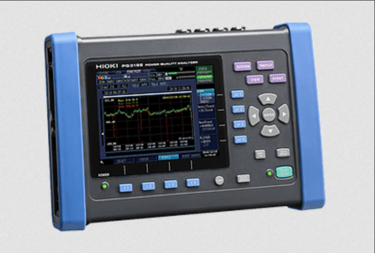

power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The new and improved PQ3198 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. New features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.

POWER QUALITY LOGGER
